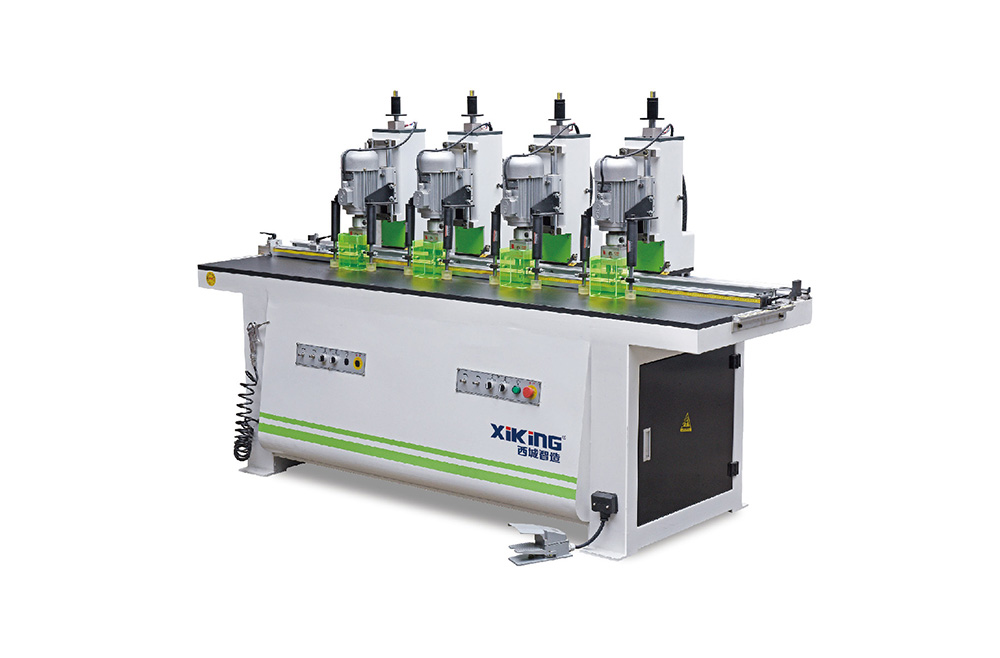

產品中心MZB73034鉸鏈多軸木工鉆床
參數配置
|
最大鉆孔直徑 |
Maximum diameter of holes |
35mm |
|
鉆孔深度范圍 |
Depth of drilled holes |
0-65mm |
|
鉆軸數 |
The total number of spindles |
12PCS |
|
最大加工工件尺寸 |
Maximum diameter of pieces to be drilled |
2500x650x80mm |
|
鉆軸轉速 |
Rotation speed of spindle |
2840r/min |
|
電機總功率 |
Total power of motor |
1.1kwx4 |
|
要求電源電壓 |
Suitable voltage |
~380V |
|
適應氣壓 |
Pressure of compressed air |
0.5-0.6Mpa |
|
每分鐘生產10塊的用氣量（約） |
Gas consumption drilling ten panels per minute approximately |
17L/min |
|
外型尺寸 |
Overall size |
2680x890x1670mm |
|
整機重量 |
Weight of the whole machine |
990kg |
|
垂直鉆兩排最大距離 |
Max.Distance of the two vertical head |
2200mm |
|
垂直鉆兩排最小距離 |
Min.Distance of the two vertical head |
280mm |
